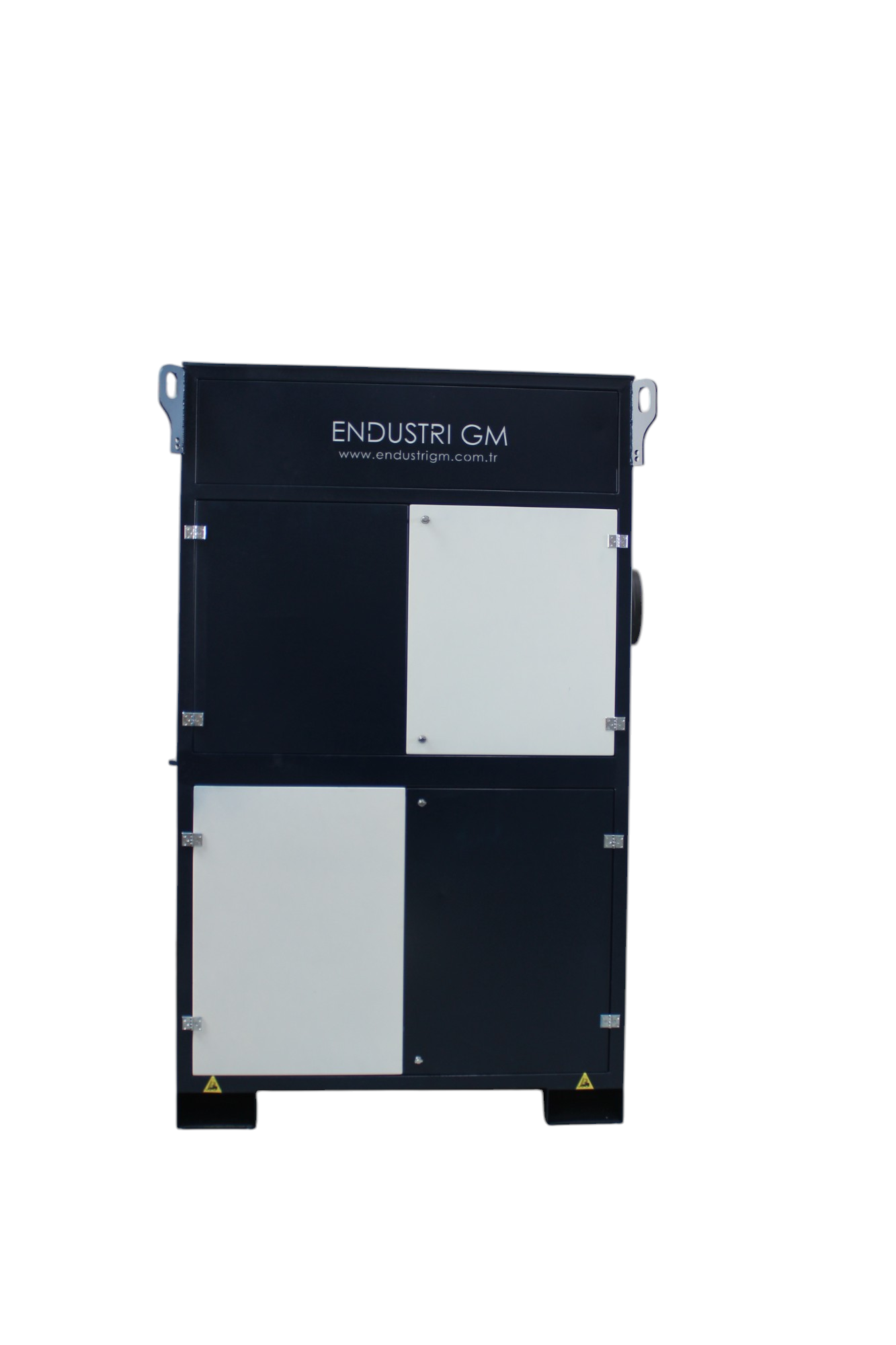

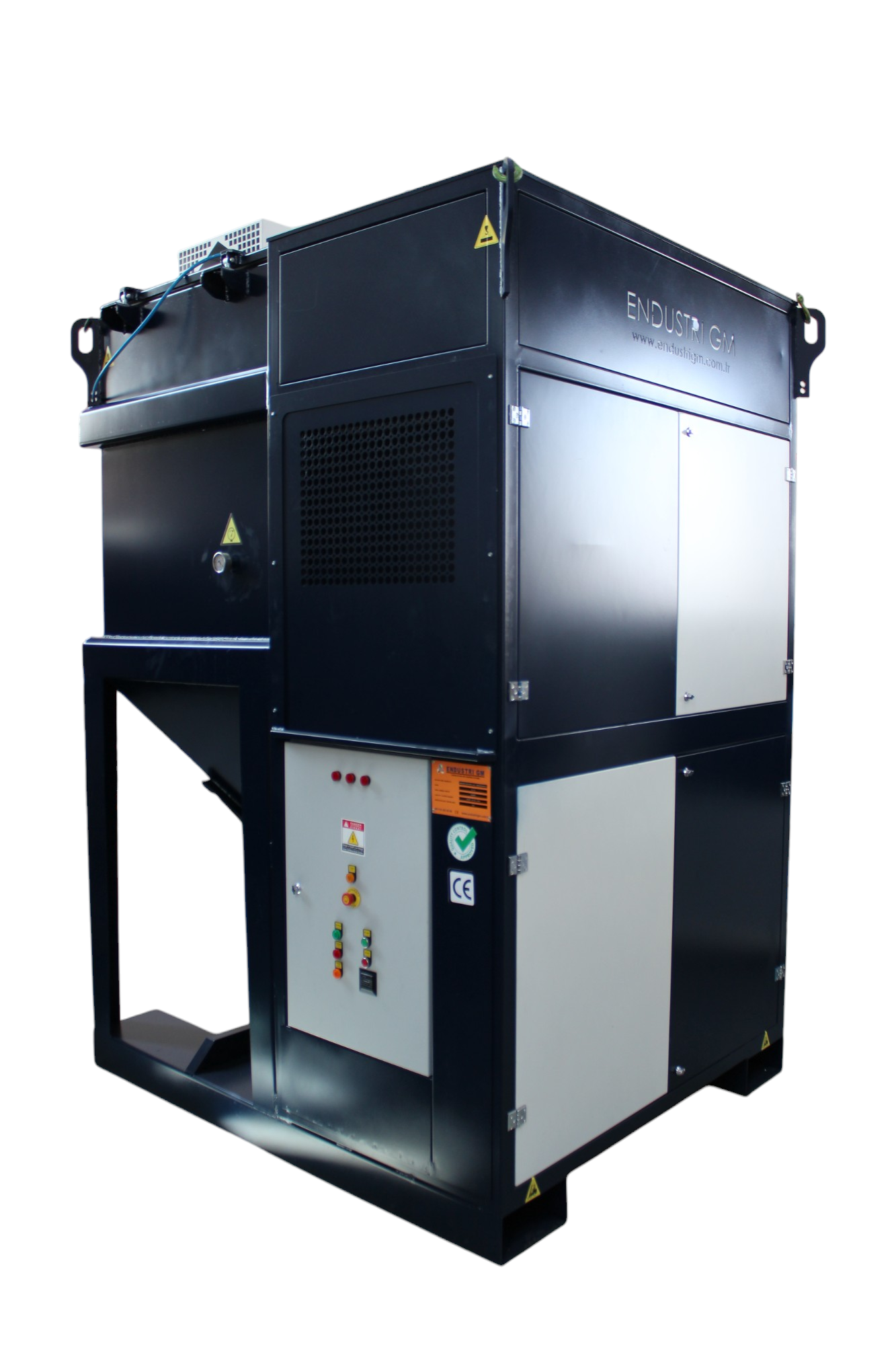

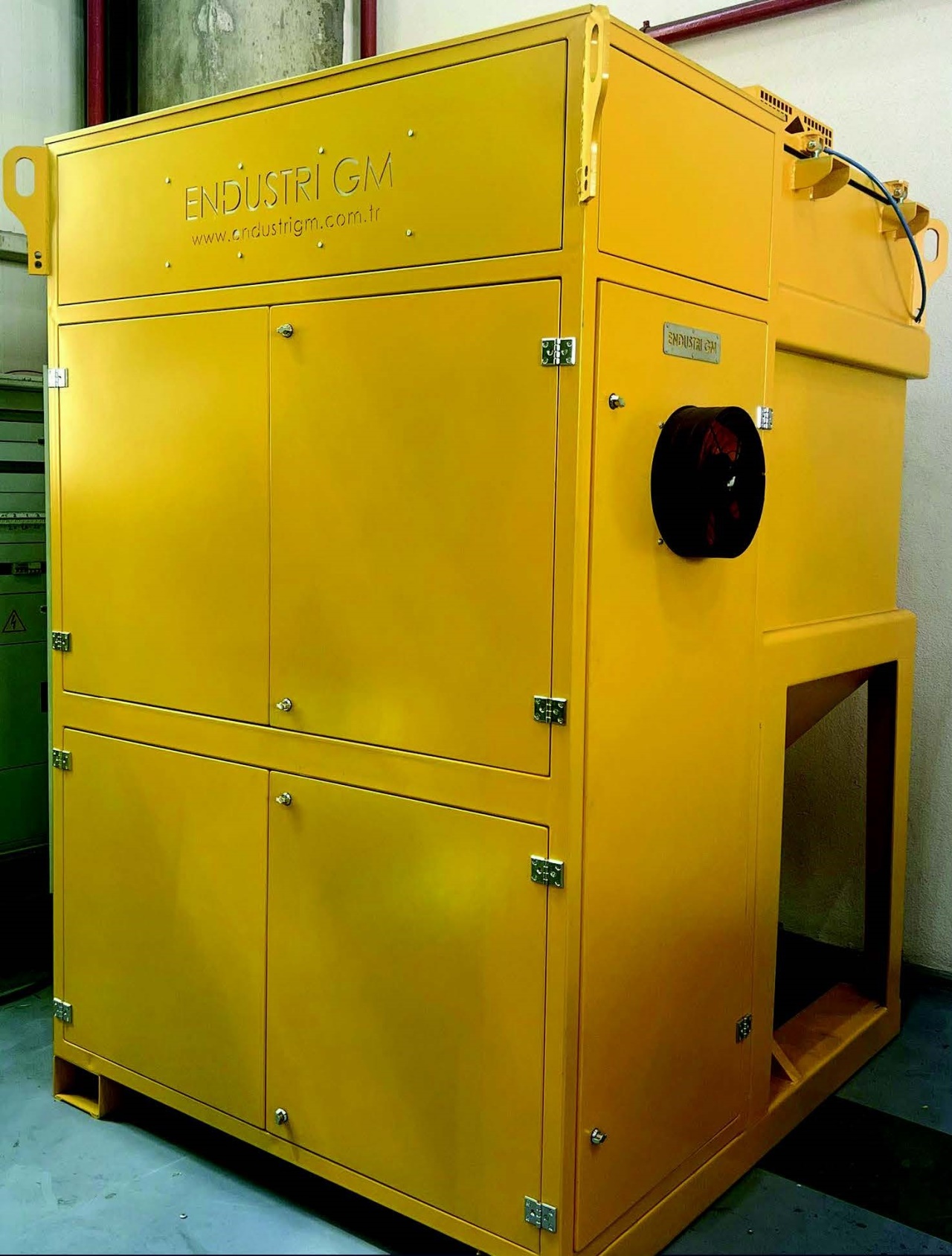

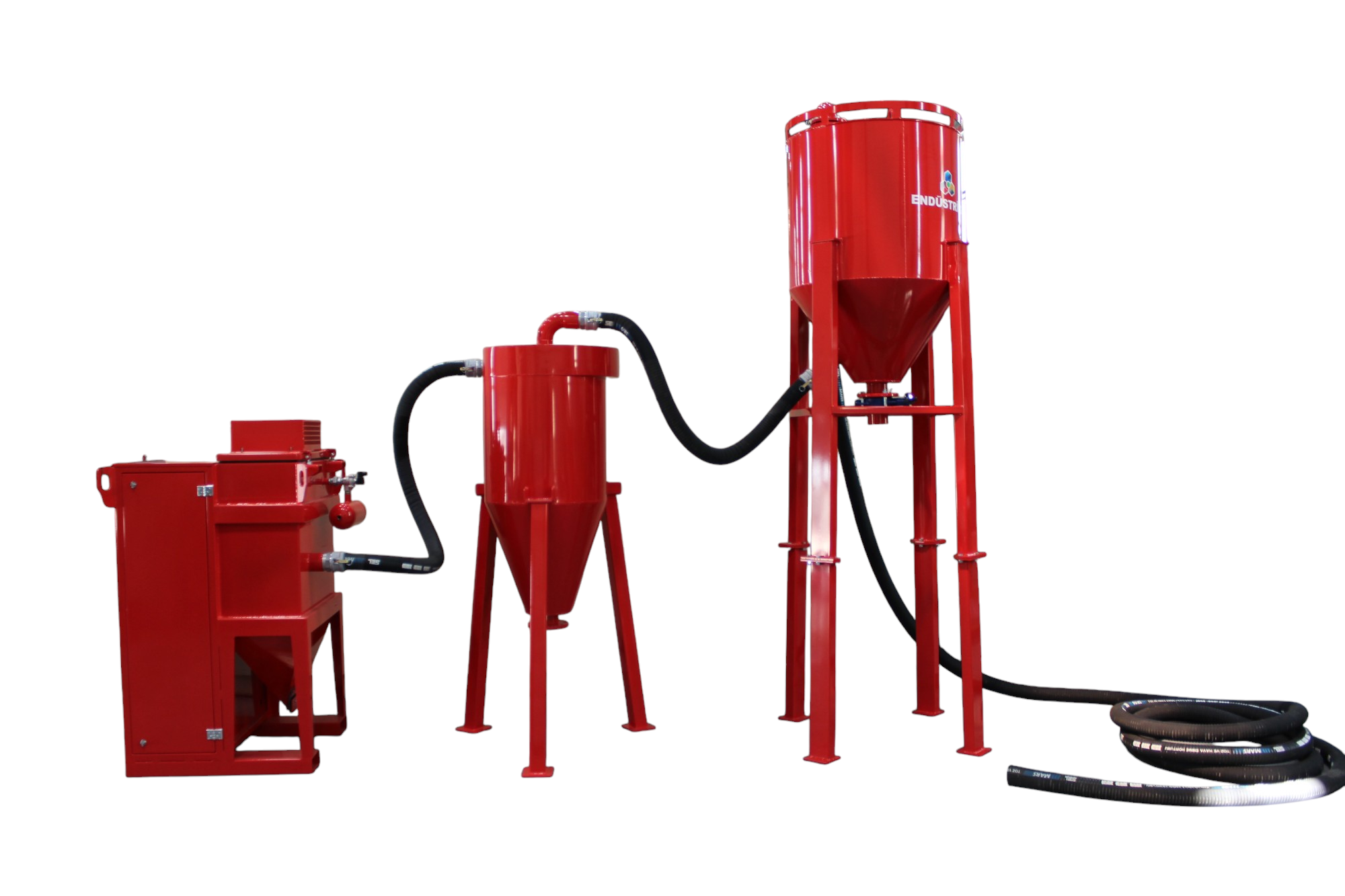

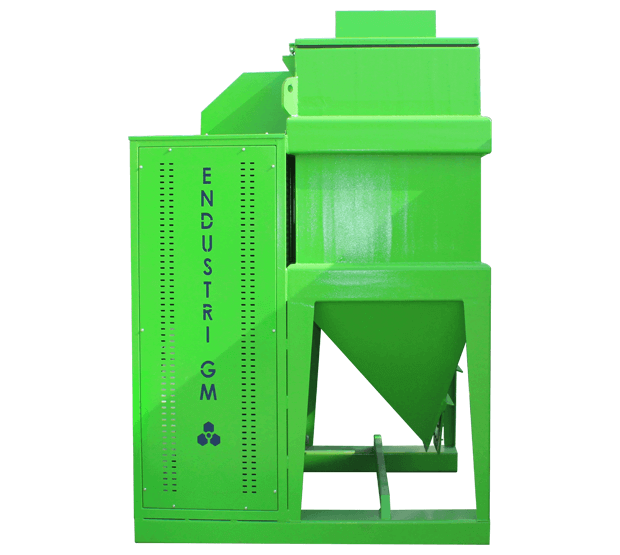

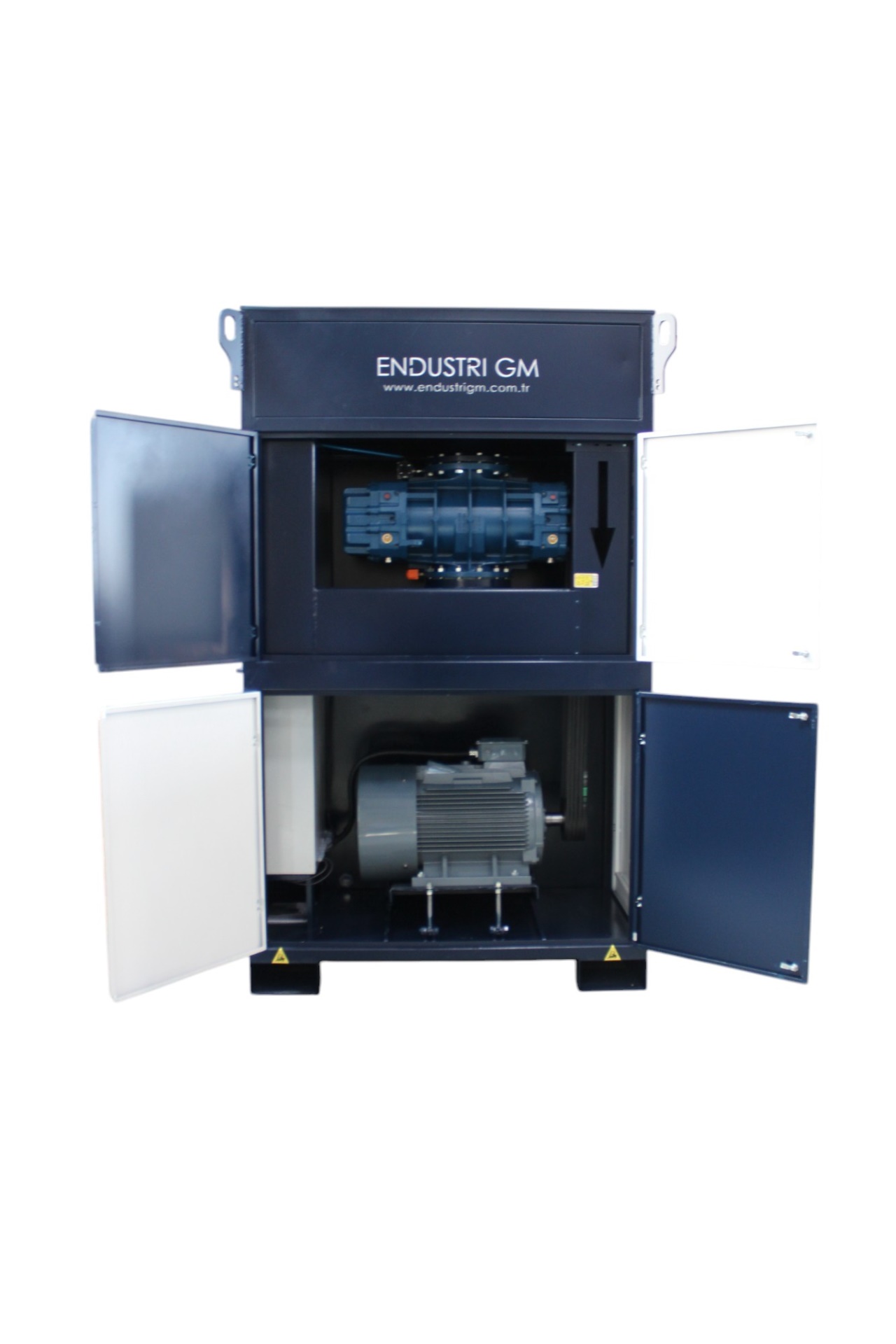

Vacuum Machine

ENDÜSTRI-GM Vacuum Machine is a machine that contributes a lot to the business. During the sandblasting, it collects the granules falling back to the ground, separates the granules it collects, filters the dust and throws it cleanly into the atmosphere. It makes the cleaned granules ready for sanding again. This transformation makes a significant financial contribution to the business in terms of man / hour and granule cost.

Usage area is every facility that is blasted.
It is mainly used in the following industries and sectors

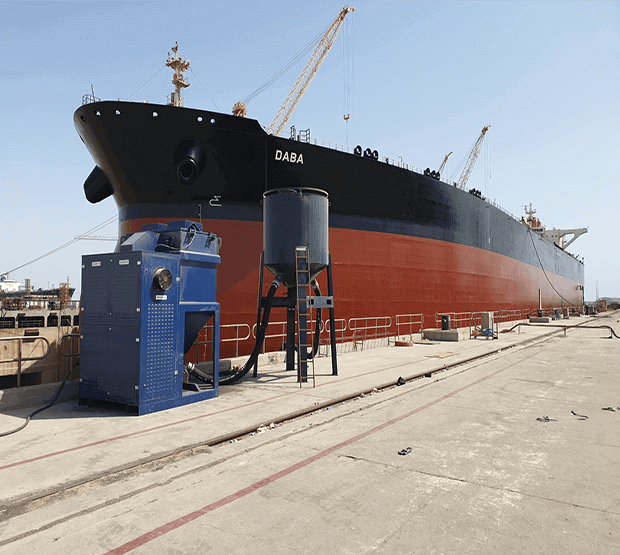

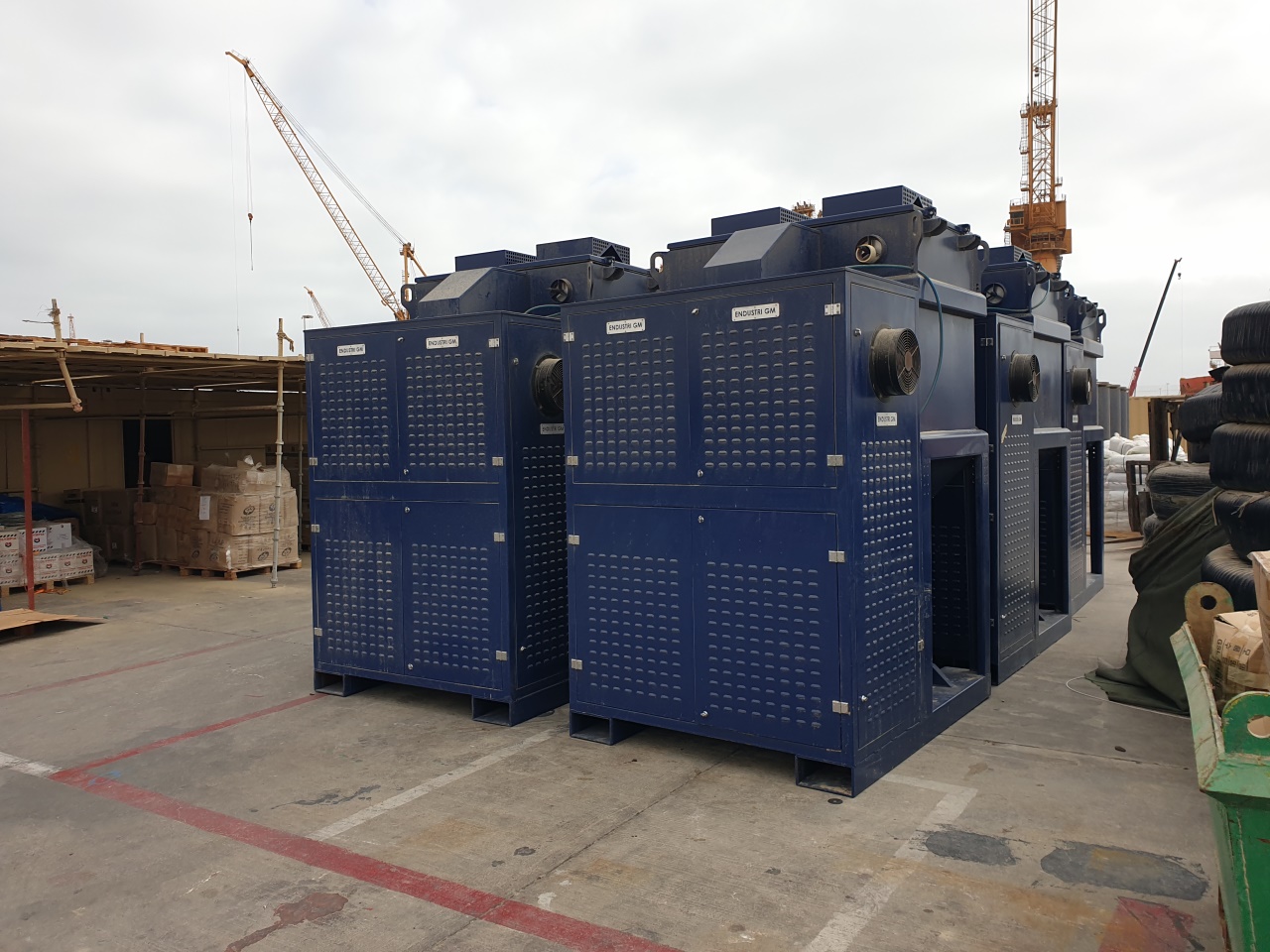

• Shipyards
• Foundries
• Tank Manufacturing
• Petro Chemistry
• Power Plants
• Trailer




Model 1
EGM Series
: VC 7,5
Capacity (per Ton-Hour)
: 0,5-1
Electric vfb
: 7,5 kW
NG (rpm)
: 3740
NM (rpm)
: 2910
Vacuum Manufacturer (AERZEN Blower)
: GM 4S
Q1 (m3/min)
: 3,98
t2 (ºC)
: 74
Filter Surface (m²)
: 2
Max. Suction Distance
: 13mts
Number of Cartridge Filters
: 1pcs
Recommended Suction Distance
: 8mts
Start Stop Dir.
: star-delta
Maximum Sound Level
: 75
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz
Model 2
EGM Series
: VC 18,5
Capacity (per Ton-Hour)
: 0,8-2
Electric Motor
: 18,5 kW
NG (rpm)
: 3660
NM (rpm)
: 2930
Vacuum Manufacturer (AERZEN Blower)
: GM 15L
Q1 (m3/min)
: 12,6
t2 (ºC)
: 70
Recommended Suction Distance
: 15mts
Max. Suction Distance
: 22mts
Number of Cartridge Filters
: 2pcs
Filter Surface (m²)
: 8
Start Stop Dir.
: star-delta
Maximum Sound Level
: 75
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz

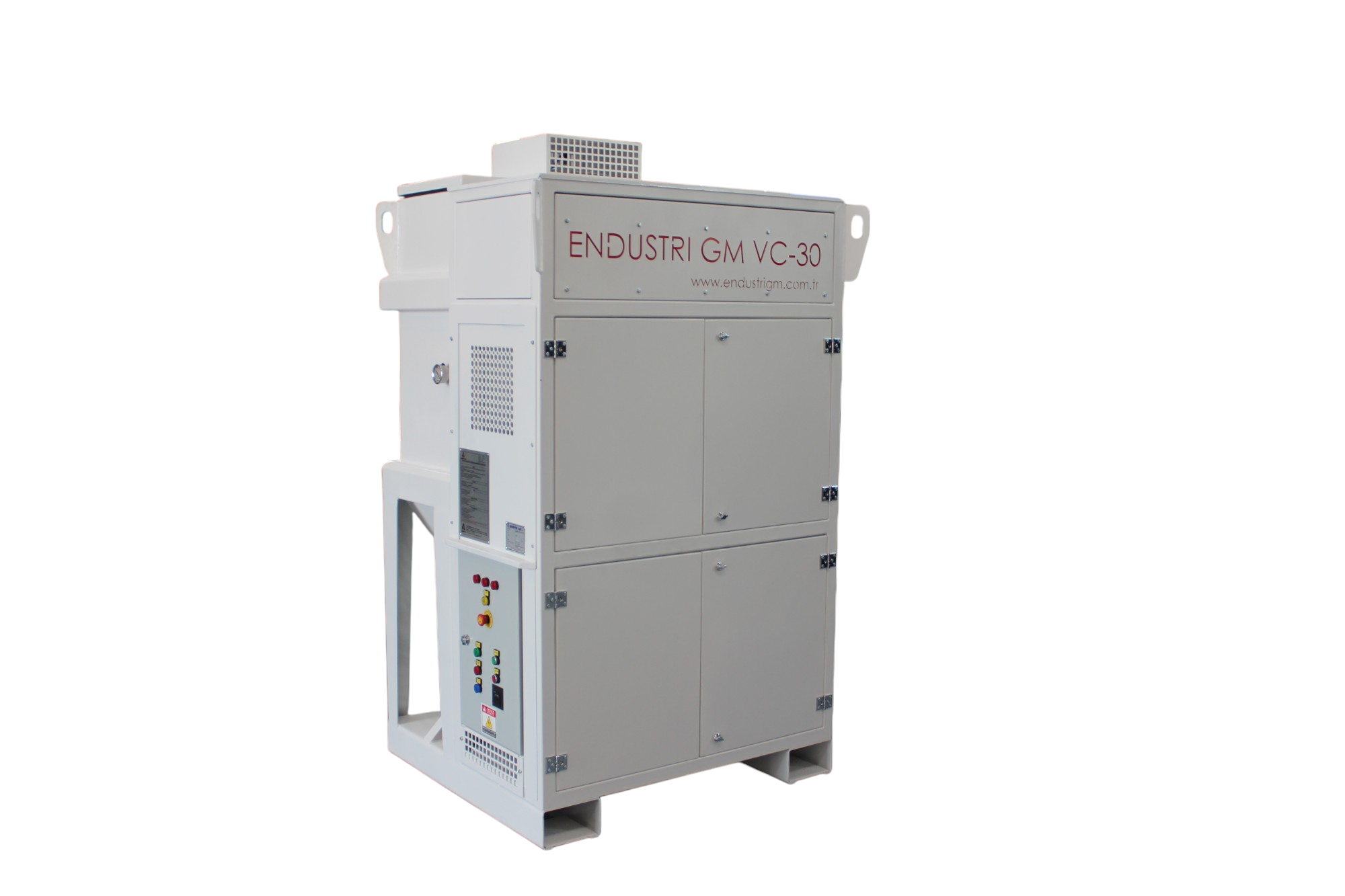

Model 3
EGM Series
: VC 30
Capacity (per Ton-Hour)
: 1,2-4
Electric Motor
: 30 kW
NG (rpm)
: 3660
NM (rpm)
: 2945
Vacuum Manufacturer (AERZEN Blower)
: GM 25S
Q1 (m3/min)
: 18,2
t2 (ºC)
: 67
Recommended Suction Distance
: 20mts
Max. Suction Distance
: 32mts
Number of Cartridge Filters
: 2pcs
Filter Surface (m²)
: 12
Maximum Sound Level
: 80
Start Stop Dir.
: star-delta
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz
Model 4
EGM Series
: VC 37
Capacity (per Ton-Hour)
: 1,5-5
Electric Motor
: 37 kW
NG (rpm)
: 3660
NM (rpm)
: 2945
Vacuum Manufacturer (AERZEN Blower)
: GM 25S/30L
Q1 (m3/min)
: 25,7
t2 (ºC)
: 67
Recommended Suction Distance
: 25mts
Max. Suction Distance
: 36mts
Number of Cartridge Filters
: 2pcs
Filter Surface (m²)
: 12
Start Stop Dir.
: star-delta
Maximum Sound Level
: 85
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz
Model 5
EGM Series
: VC 45
Capacity (per Ton-Hour)
: 2.Tem
Electric Motor
: 45 kW
NG (rpm)
: 3300
NM (rpm)
: 2965
Vacuum Manufacturer (AERZEN Blower)
: GM 30L/35S
Q1 (m3/min)
: 33,8
t2 (ºC)
: 66
Recommended Suction Distance
: 30mts
Max. Suction Distance
: 45mts
Number of Cartridge Filters
: 2pcs
Filter Surface (m²)
: 18
Start Stop Dir.
: star-delta
Maximum Sound Level
: 85
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz
Model 6
EGM Series
: VC 55
Capacity (per Ton-Hour)
: 3.Ağu
Electric Motor
: 55 kW
NG (rpm)
: 2965
NM (rpm)
: 2965
Vacuum Manufacturer (AERZEN Blower)
: GM 50L
Q1 (m3/min)
: 42,7
t2 (ºC)
: 66
Recommended Suction Distance
: 40mts
Max. Suction Distance
: 60mts
Number of Cartridge Filters
: 2pcs
Filter Surface (m²)
: 22
Start Stop Dir.
: star-delta
Maximum Sound Level
: 85
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz
Model 7
EGM Series
: VC 75
Capacity (per ton-hour)
: 5.Ara
Electric Motor
: 75 kW
NG (rpm)
: 3710
NM (rpm)
: 2970
Vacuum Manufacturer (AERZEN Blower)
: GM 50L/60S
Q1 (m3/min)
: 54,6
t2 (ºC)
: 65
Recommended Suction Distance
: 50mts
Max. Suction Distance
: 80mts
Number of Cartridge Filters
: 4pcs
Filter Surface (m²)
: 32
Start Stop Dir.
: star-delta
Maximum Sound Level
: 90
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz
Model 8
EGM Series
: VC 90
Capacity (per ton-hour)
: Haz.15
Electric Motor
: 90 kW
NG (rpm)
: 3710
NM (rpm)
: 2970
Vakum Üreticisi(AERZEN Blower)
: GM 60S/80L
Q1 (m3/min)
: 72
t2 (ºC)
: 67
Recommended Suction Distance
: 60mts
Max. Suction Distance
: 100mts
Number of Cartridge Filters
: 4pcs
Filter Surface (m2)
: 42
Start-Stop Method
: star-delta
Max. Noise Level (dB)
: 90
Electricity Supply
: 380Volt-50Hz/440Volt-60Hz or 380Volt-60Hz
